- Sensor Element: NTC 10K
- Sensing range: -40 Deg C – 150 Deg C)
- Output: NTC 10k Ohms at 25 Deg C, two-wire connections for measuring temperature
- Mounting: Duct Mounted Type
Description

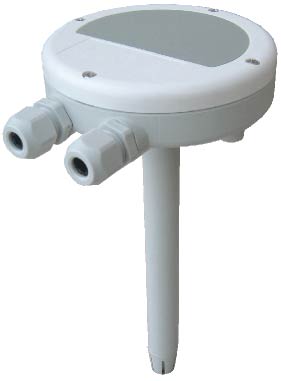

EPDT002000 temperature sensor provides a stable, repeatable, reliable and accurate means of measuring temperature in the air duct. The NTC 10K sensor used in the EPDT002000 is not affected by any condensation, high humidity or contaminants present in the measure environment.
The EPDT002000 is a plugged-in construction that ensures a rapid and easy installation, thus greatly reduce installation and maintenance costs. The EPDT002000 enclosure is made of ABS plastic.
Electric connections
Hardware Specifications
| Sensing Range: | -40 Deg C – 150 Deg C |
|---|---|
| Output Signal: | NTC 10k Ohms at 25 Deg C |
| Accuracy: | ±0.1°C at 25 Deg C |
| Response Time: | 20s (still air) / 10s (with duct 3m/s air speed) |
| Operating Condition: | 0~+70°C / 0-100% RH, non condensing |
| Storage Condition: | -20~+70°C / 0-100% RH, non condensing |
| Probe Length: | 191 mm |
| Protection: | IP65 |
| Weight: | 170 g |
Dimensions
